JANTX2N3772

In Stock: 2,723

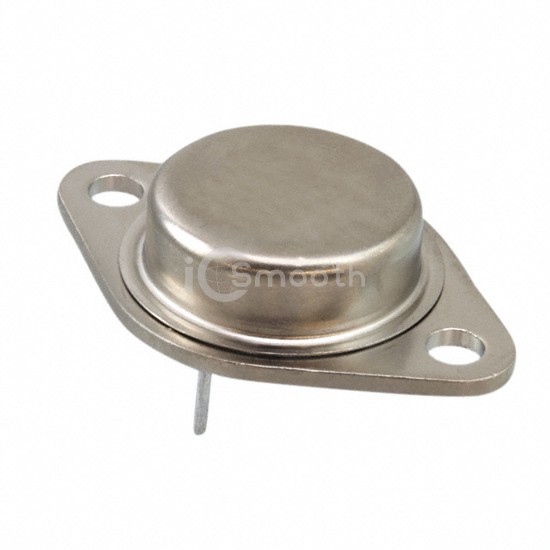

JANTX2N3772 - Microchip Technology - Transistors - Bipolar (BJT) - Single
REF: JANTX2N3772 Microchip Technology
JANTX2N3772

Microchip Technology

TRANS NPN 60V 20A TO3

JANTX2N3772 is a Transistors - Bipolar (BJT) - Single manufactured by Microchip Technology. TRANS NPN 60V 20A TO3. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-204AA, TO-3, current - collector (ic) (max) 20 A.

Datasheet Request a Quote

In Stock: 2,723

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)20 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic4V @ 4A, 20A
Current - Collector Cutoff (Max)5mA
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 10A, 4V
Power - Max6 W
Frequency - Transition-
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-3
