JANTX2N3735L

In Stock: 5,078

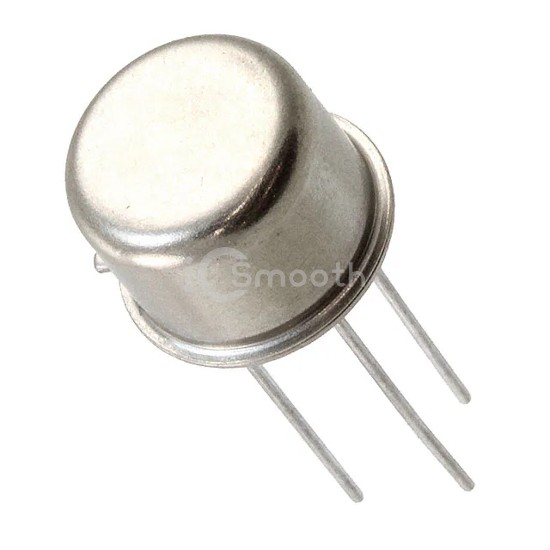

JANTX2N3735L - Microchip Technology - Transistors - Bipolar (BJT) - Single
REF: JANTX2N3735L Microchip Technology
JANTX2N3735L

Microchip Technology

TRANS NPN 40V 1.5A TO5

JANTX2N3735L is a Transistors - Bipolar (BJT) - Single manufactured by Microchip Technology. TRANS NPN 40V 1.5A TO5. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-205AA, TO-5-3 Metal Can, current - collector (ic) (max) 1.5 A.

Datasheet Request a Quote

In Stock: 5,078

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1.5 A
Voltage - Collector Emitter Breakdown (Max)40 V
Vce Saturation (Max) @ Ib, Ic900mV @ 100mA, 1A
Current - Collector Cutoff (Max)10µA
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 1A, 1.5V
Power - Max1 W
Frequency - Transition-
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-205AA, TO-5-3 Metal Can
Supplier Device PackageTO-5
