JANTX2N3055

In Stock: 4,103

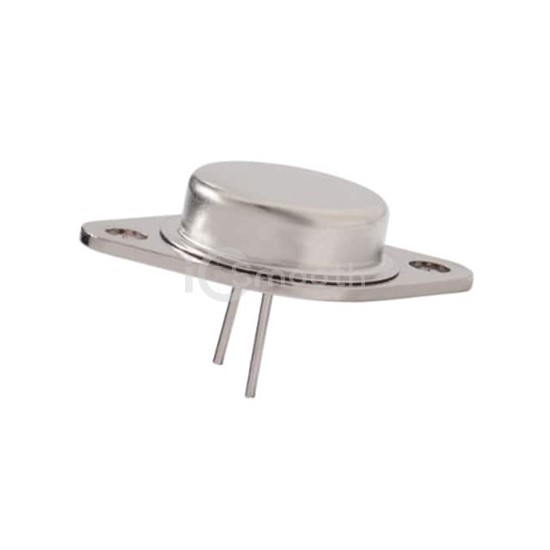

JANTX2N3055 - Microchip Technology - Transistors - Bipolar (BJT) - Single
REF: JANTX2N3055 Microchip Technology
JANTX2N3055

Microchip Technology

TRANS NPN 70V 15A TO3

JANTX2N3055 is a Transistors - Bipolar (BJT) - Single manufactured by Microchip Technology. TRANS NPN 70V 15A TO3. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-204AA, TO-3, current - collector (ic) (max) 15 A.

Datasheet Request a Quote

In Stock: 4,103

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)15 A
Voltage - Collector Emitter Breakdown (Max)70 V
Vce Saturation (Max) @ Ib, Ic2V @ 3.3A, 10A
Current - Collector Cutoff (Max)1mA
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 4A, 4V
Power - Max6 W
Frequency - Transition-
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-3 (TO-204AA)
