JANTX2N2326

In Stock: 5,443

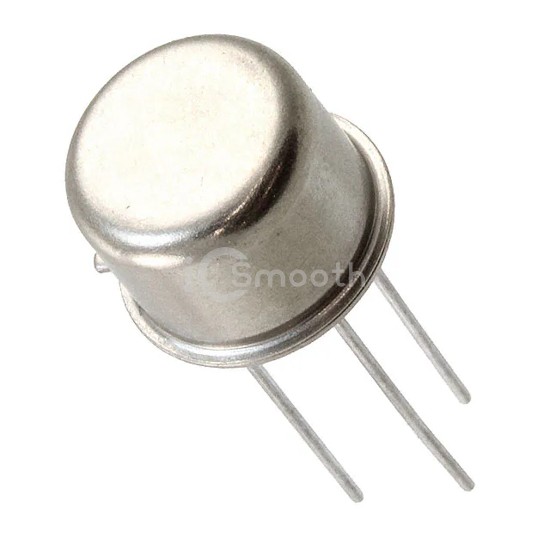

JANTX2N2326 - Microchip Technology - Thyristors - SCRs
REF: JANTX2N2326 Microchip Technology
JANTX2N2326

Microchip Technology

SCR 200V TO5

JANTX2N2326 is a Thyristors - SCRs manufactured by Microchip Technology. SCR 200V TO5. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, package / case TO-205AA, TO-5-3 Metal Can.

Datasheet Request a Quote

In Stock: 5,443

Specifications

15 parameters
Product StatusObsolete
Voltage - Off State200 V
Voltage - Gate Trigger (Vgt) (Max)800 mV
Current - Gate Trigger (Igt) (Max)200 µA
Voltage - On State (Vtm) (Max)-
Current - On State (It (AV)) (Max)220 mA
Current - On State (It (RMS)) (Max)-
Current - Hold (Ih) (Max)2 mA
Current - Off State (Max)-
Current - Non Rep. Surge 50, 60Hz (Itsm)-
SCR TypeSensitive Gate
Operating Temperature-65°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-205AA, TO-5-3 Metal Can
Supplier Device PackageTO-5
