Name: JAN2N2060
Brand: Microchip Technology
SKU: JAN2N2060
Price: 56.85 USD
Availability: InStock

REF: JAN2N2060 Microchip Technology

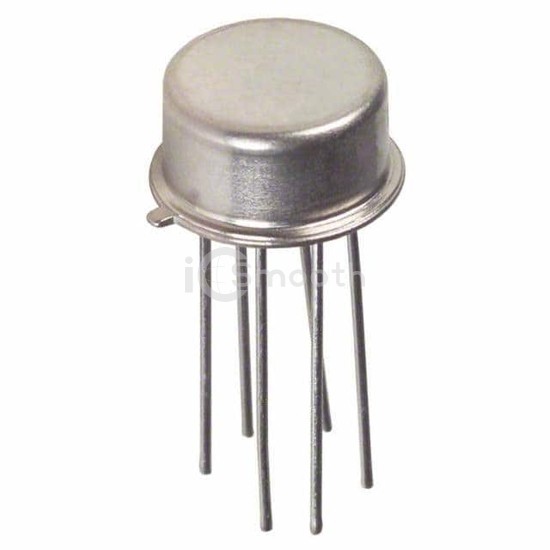

JAN2N2060

NPN LOW POWER SILICON TRANSISTOR

JAN2N2060 is a Transistors - Bipolar (BJT) - Arrays manufactured by Microchip Technology. NPN LOW POWER SILICON TRANSISTOR. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-78-6 Metal Can, current - collector (ic) (max) 500mA.

Request a Quote

In Stock: 2,336

Specifications

13 parameters

Product Status	Active
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	60V
Vce Saturation (Max) @ Ib, Ic	300mV @ 5mA, 50mA
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 10mA, 5V

Power - Max	600mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-78-6 Metal Can
Supplier Device Package	TO-78-6
