JAN1N6309D

In Stock: 1,086

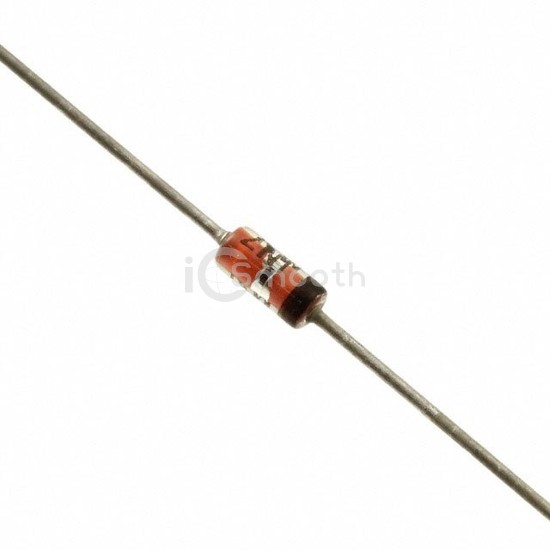

JAN1N6309D - Microchip Technology - Diodes - Zener - Single
REF: JAN1N6309D Microchip Technology
JAN1N6309D

Microchip Technology

DIODE ZENER 2.4V 500MW DO35

JAN1N6309D is a Diodes - Zener - Single manufactured by Microchip Technology. DIODE ZENER 2.4V 500MW DO35. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C (TJ), package / case DO-204AH, DO-35, Axial, power - max 500 mW.

Datasheet Request a Quote

In Stock: 1,086

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)2.4 V
Tolerance±1%
Power - Max500 mW
Impedance (Max) (Zzt)30 Ohms
Current - Reverse Leakage @ Vr100 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If1.4 V @ 1 A
Operating Temperature-65°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseDO-204AH, DO-35, Axial
Supplier Device PackageDO-35 (DO-204AH)
