ATWILC1000B-UU-T

In Stock: 2,739

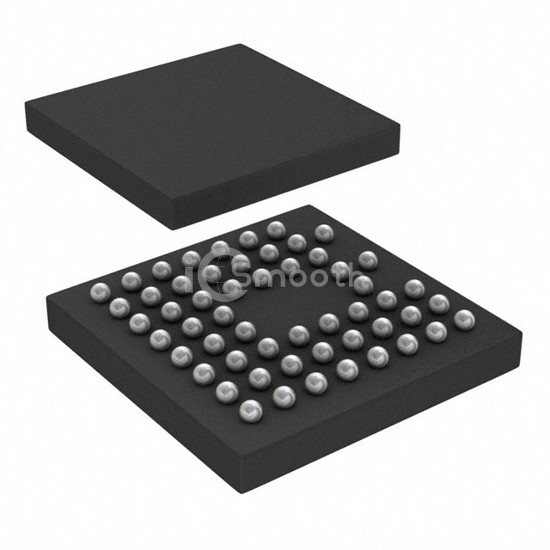

ATWILC1000B-UU-T - Microchip Technology - RF Transceiver ICs
REF: ATWILC1000B-UU-T Microchip Technology
ATWILC1000B-UU-T

Microchip Technology

IC RF TXRX+MCU WIFI 55UFBGA

ATWILC1000B-UU-T is a RF Transceiver ICs manufactured by Microchip Technology. IC RF TXRX+MCU WIFI 55UFBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.62V ~ 3.6V, package / case 55-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 2,739

Tiered Pricing USD
1+ $1.0100 —
25+ $0.9424 -7% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/StandardWiFi
Protocol802.11b/g/n
ModulationCCK, DSSS, OFDM
Frequency2.4GHz
Data Rate (Max)72.2Mbps
Power - Output20.5dBm
Sensitivity-98dBm
Memory Size128kB ROM, 224kB RAM
Serial InterfacesI²C, SDIO, SPI, UART
GPIO9
Voltage - Supply1.62V ~ 3.6V
Current - Receiving52.5mA ~ 58.5mA
Current - Transmitting244mA ~ 294mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case55-UFBGA, WLCSP
Supplier Device Package55-WLCSP (3.25x3.25)
