Name: ATSAMD51J20A-UUT
Brand: Microchip Technology
SKU: ATSAMD51J20A-UUT
Availability: InStock

REF: ATSAMD51J20A-UUT Microchip Technology

ATSAMD51J20A-UUT

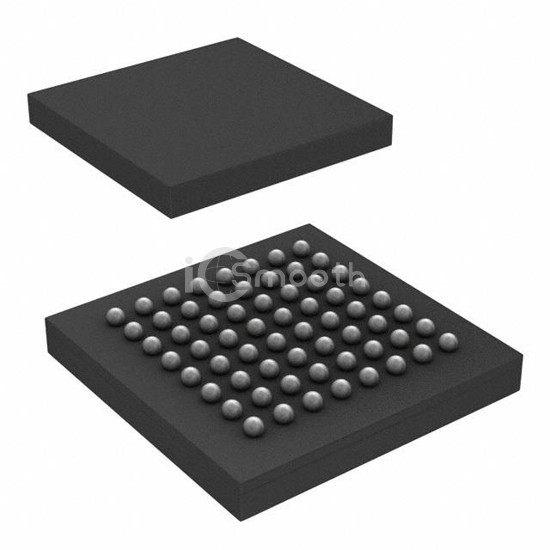

IC MCU 32BIT 1MB FLASH 64WLCSP

ATSAMD51J20A-UUT is a Embedded - Microcontrollers manufactured by Microchip Technology. IC MCU 32BIT 1MB FLASH 64WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.71V ~ 3.63V, package / case 64-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 6,546

Specifications

18 parameters

Product Status	Active
Core Processor	ARM® Cortex®-M4F
Core Size	32-Bit Single-Core
Speed	120MHz
Connectivity	EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB
Peripherals	Brown-out Detect/Reset, DMA, I²S, POR, PWM
Number of I/O	51
Program Memory Size	1MB (1M x 8)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	256K x 8
Voltage - Supply (Vcc/Vdd)	1.71V ~ 3.63V
Data Converters	A/D 24x12b; D/A 2x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	64-UFBGA, WLCSP
Supplier Device Package	64-WLCSP (3.6x3.5)
