ATMEGA256RFR2-ZF

In Stock: 9,336

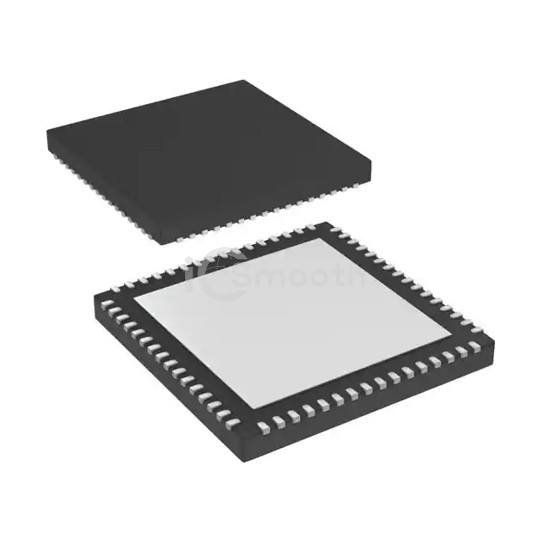

ATMEGA256RFR2-ZF - Microchip Technology - RF Transceiver ICs
REF: ATMEGA256RFR2-ZF Microchip Technology
ATMEGA256RFR2-ZF

Microchip Technology

IC RF TXRX+MCU 802.15.4 64VFQFN

ATMEGA256RFR2-ZF is a RF Transceiver ICs manufactured by Microchip Technology. IC RF TXRX+MCU 802.15.4 64VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.8V ~ 3.6V, package / case 64-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,336

Tiered Pricing USD
1+ $7.8800 —
25+ $7.1900 -9%
100+ $7.1625 -9% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/Standard802.15.4
ProtocolZigbee®
ModulationDSSS, O-QPSK
Frequency2.4GHz
Data Rate (Max)2Mbps
Power - Output3.5dBm
Sensitivity-100dBm
Memory Size256kB Flash, 8kB EEPROM, 32kB SRAM
Serial InterfacesI²C, JTAG, SPI, USART
GPIO35
Voltage - Supply1.8V ~ 3.6V
Current - Receiving5mA ~ 12.5mA
Current - Transmitting8mA ~ 14.5mA
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case64-VFQFN Exposed Pad
Supplier Device Package64-QFN (9x9)
