ATMEGA2560R231-CU

In Stock: 5,814

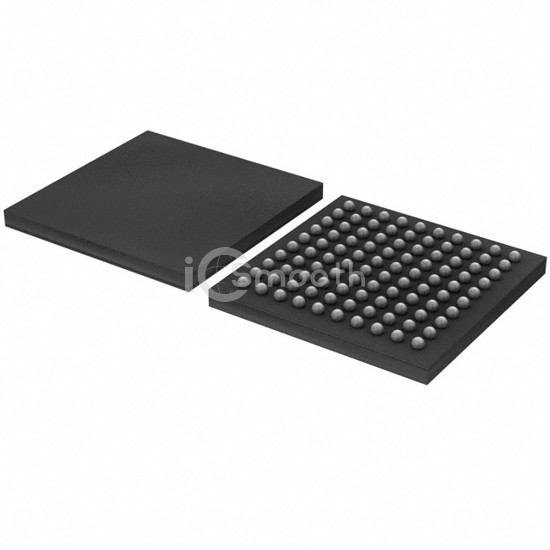

ATMEGA2560R231-CU - Microchip Technology - RF Transceiver ICs
REF: ATMEGA2560R231-CU Microchip Technology
ATMEGA2560R231-CU

Microchip Technology

IC RF TXRX+MCU 802.15.4 100TFBGA

ATMEGA2560R231-CU is a RF Transceiver ICs manufactured by Microchip Technology. IC RF TXRX+MCU 802.15.4 100TFBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 3.6V, package / case 100-TFBGA.

Datasheet Request a Quote

In Stock: 5,814

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/Standard802.15.4, General ISM > 1GHz
Protocol6LoWPAN, WirelessHART™, Zigbee®
ModulationO-QPSK
Frequency2.4GHz
Data Rate (Max)2Mbps
Power - Output3dBm
Sensitivity-101dBm
Memory Size256kB Flash, 4kB EEPROM, 8kB RAM
Serial InterfacesSPI
GPIO86
Voltage - Supply1.8V ~ 3.6V
Current - Receiving10.3mA ~ 12.3mA
Current - Transmitting7.4mA ~ 14mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case100-TFBGA
Supplier Device Package100-CBGA (9x9)
