ATA8520D-GHPW

In Stock: 8,574

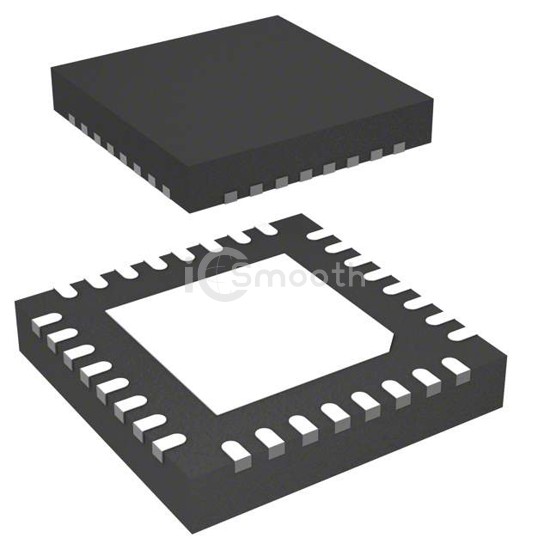

ATA8520D-GHPW - Microchip Technology - RF Transceiver ICs
REF: ATA8520D-GHPW Microchip Technology
ATA8520D-GHPW

Microchip Technology

IC RF TXRX+MCU ISM<1GHZ 32VFQFN

ATA8520D-GHPW is a RF Transceiver ICs manufactured by Microchip Technology. IC RF TXRX+MCU ISM<1GHZ 32VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.9V ~ 3.6V, 2.4V ~ 5.5V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,574

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/StandardGeneral ISM < 1GHz
ProtocolSIGFOX™
ModulationDBSPK, GFSK
Frequency868MHz
Data Rate (Max)600bps
Power - Output14dBm
Sensitivity-121.5dBm
Memory Size-
Serial InterfacesSPI
GPIO-
Voltage - Supply1.9V ~ 3.6V, 2.4V ~ 5.5V
Current - Receiving10.4mA
Current - Transmitting32.7mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-VQFN (5x5)
