ATA5830-PNQW

In Stock: 8,412

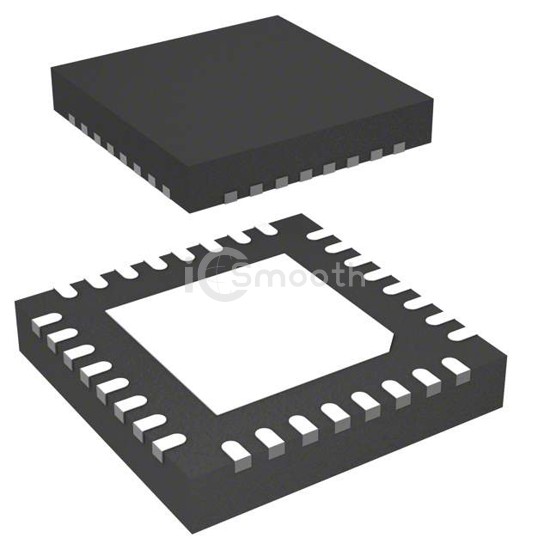

ATA5830-PNQW - Microchip Technology - RF Transceiver ICs
REF: ATA5830-PNQW Microchip Technology
ATA5830-PNQW

Microchip Technology

IC RF TXRX+MCU ISM<1GHZ 32VFQFN

ATA5830-PNQW is a RF Transceiver ICs manufactured by Microchip Technology. IC RF TXRX+MCU ISM<1GHZ 32VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 1.9V ~ 3.6V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,412

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/StandardGeneral ISM < 1GHz
Protocol-
ModulationASK, FSK
Frequency315MHz, 434MHz, 868MHz, 915MHz
Data Rate (Max)80kbps
Power - Output14.5dBm
Sensitivity-121dBm
Memory Size6kB Flash, 512B EEPROM, 24kB ROM, 768B SRAM
Serial InterfacesSPI
GPIO-
Voltage - Supply1.9V ~ 3.6V
Current - Receiving9.3mA
Current - Transmitting9.1mA ~ 13.8mA
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
