Name: ATA5824C-PLQW-1
Brand: Microchip Technology
SKU: ATA5824C-PLQW-1
Availability: InStock

REF: ATA5824C-PLQW-1 Microchip Technology

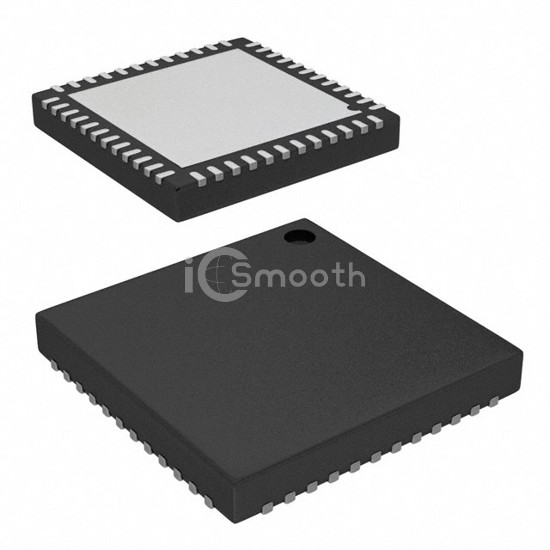

ATA5824C-PLQW-1

IC RF TXRX UHF ASK/FSK 48VFQFN

ATA5824C-PLQW-1 is a RF Transceiver ICs manufactured by Microchip Technology. IC RF TXRX UHF ASK/FSK 48VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 2.15V ~ 3.6V, 4.4V ~ 5.25V, package / case 48-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,172

Specifications

19 parameters

Product Status	Obsolete
Type	TxRx + MCU
RF Family/Standard	General ISM < 1GHz
Protocol	-
Modulation	ASK, FSK
Frequency	315MHz, 433.92MHz, 868MHz
Data Rate (Max)	20kbps
Power - Output	10dBm
Sensitivity	-117dBm
Memory Size	-

Serial Interfaces	SPI
GPIO	-
Voltage - Supply	2.15V ~ 3.6V, 4.4V ~ 5.25V
Current - Receiving	9.7mA ~ 10.8mA
Current - Transmitting	8.5mA ~ 16.3mA
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	48-VFQFN Exposed Pad
Supplier Device Package	48-QFN (7x7)
