AT86RF233-ZF

In Stock: 7,307

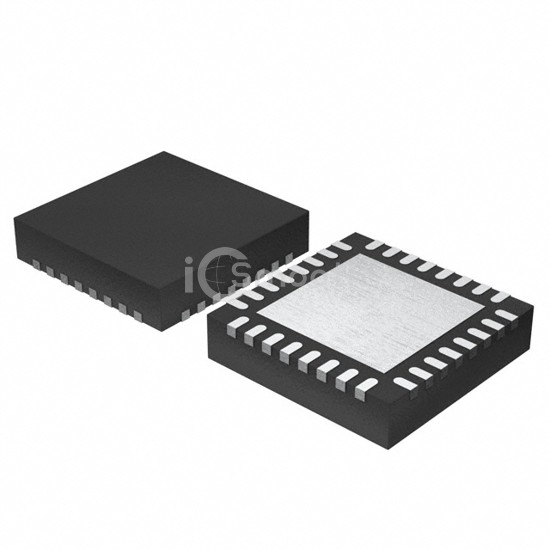

AT86RF233-ZF - Microchip Technology - RF Transceiver ICs
REF: AT86RF233-ZF Microchip Technology
AT86RF233-ZF

Microchip Technology

IC RF TXRX+MCU 802.15.4 32VFQFN

AT86RF233-ZF is a RF Transceiver ICs manufactured by Microchip Technology. IC RF TXRX+MCU 802.15.4 32VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.8V ~ 3.6V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,307

Tiered Pricing USD
1+ $4.5600 —
25+ $4.1600 -9%
100+ $3.9100 -14% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/Standard802.15.4, General ISM > 1GHz
Protocol6LoWPAN, Zigbee®
ModulationO-QPSK
Frequency2.4GHz
Data Rate (Max)2Mbps
Power - Output4dBm
Sensitivity-101dBm
Memory Size128B SRAM
Serial InterfacesSPI
GPIO-
Voltage - Supply1.8V ~ 3.6V
Current - Receiving11.3mA ~ 11.8mA
Current - Transmitting7.2mA ~ 13.8mA
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
