APT85GR120L

In Stock: 1,427
APT85GR120L - Microchip Technology - Transistors - IGBTs - Single
REF: APT85GR120L Microchip Technology
APT85GR120L

Microchip Technology

IGBT 1200V 170A 962W TO264

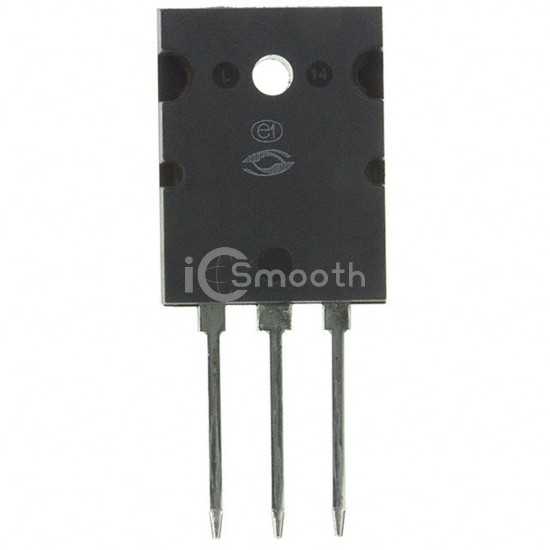

APT85GR120L is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 1200V 170A 962W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 170 A.

Datasheet Request a Quote

In Stock: 1,427

Specifications

17 parameters
Product StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)170 A
Current - Collector Pulsed (Icm)340 A
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 85A
Power - Max962 W
Switching Energy6mJ (on), 3.8mJ (off)
Input TypeStandard
Gate Charge660 nC
Td (on/off) @ 25°C43ns/300ns
Test Condition600V, 85A, 4.3Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264
