Name: APT75GN120LG
Brand: Microchip Technology
SKU: APT75GN120LG
Price: 16.36 USD
Availability: InStock

REF: APT75GN120LG Microchip Technology

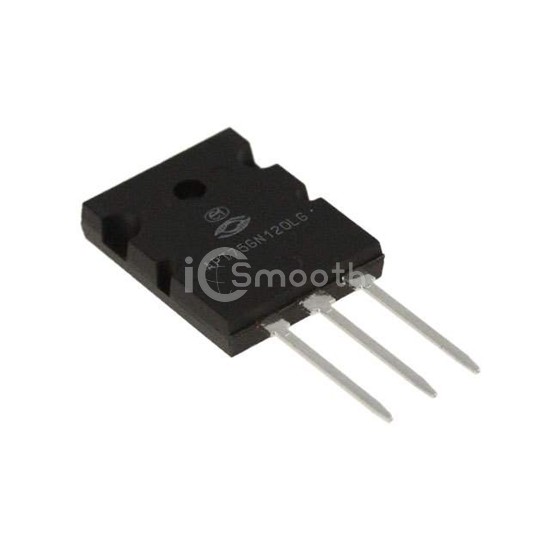

APT75GN120LG

Microchip Technology

IGBT 1200V 200A 833W TO264

APT75GN120LG is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 1200V 200A 833W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 200 A.

Datasheet Request a Quote

In Stock: 2,050

Specifications

17 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	200 A
Current - Collector Pulsed (Icm)	225 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 75A
Power - Max	833 W
Switching Energy	8620µJ (on), 11400µJ (off)
Input Type	Standard

Gate Charge	425 nC
Td (on/off) @ 25°C	60ns/620ns
Test Condition	800V, 75A, 1Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-264-3, TO-264AA
Supplier Device Package	TO-264 [L]
