Name: APT25GR120S
Brand: Microchip Technology
SKU: APT25GR120S
Price: 6.59 USD
Availability: InStock

REF: APT25GR120S Microchip Technology

APT25GR120S

Microchip Technology

IGBT 1200V 75A 521W D3PAK

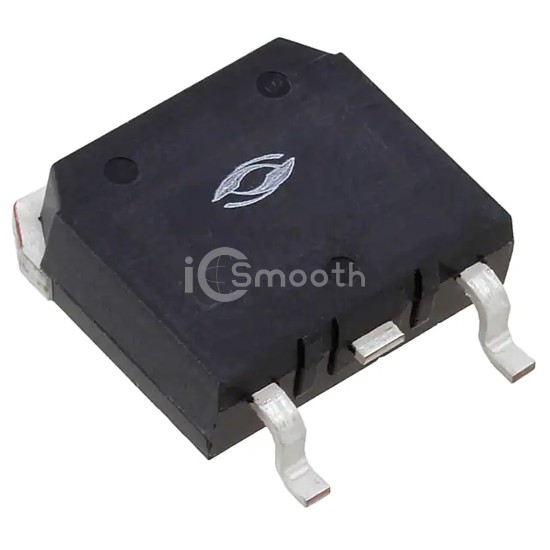

APT25GR120S is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 1200V 75A 521W D3PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 80

Specifications

17 parameters

Product Status	Active
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	75 A
Current - Collector Pulsed (Icm)	100 A
Vce(on) (Max) @ Vge, Ic	3.2V @ 15V, 25A
Power - Max	521 W
Switching Energy	742µJ (on), 427µJ (off)
Input Type	Standard

Gate Charge	203 nC
Td (on/off) @ 25°C	16ns/122ns
Test Condition	600V, 25A, 4.3Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	D3Pak
