Name: APT25GN120SG
Brand: Microchip Technology
SKU: APT25GN120SG
Price: 7.89 USD
Availability: InStock

REF: APT25GN120SG Microchip Technology

APT25GN120SG

Microchip Technology

IGBT 1200V 67A 272W D3PAK

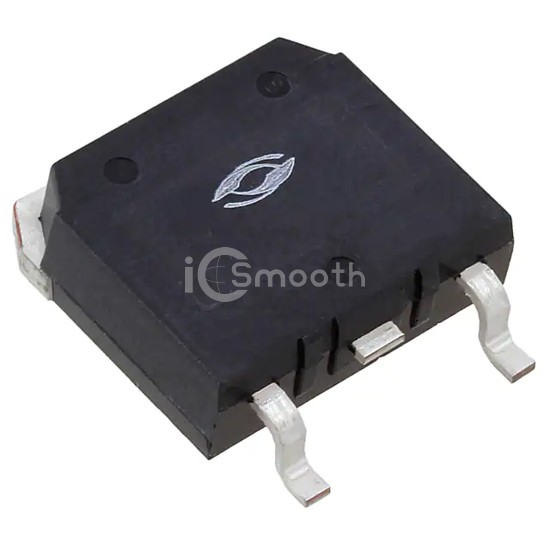

APT25GN120SG is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 1200V 67A 272W D3PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 67 A.

Datasheet Request a Quote

In Stock: 89

Specifications

17 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	67 A
Current - Collector Pulsed (Icm)	75 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 25A
Power - Max	272 W
Switching Energy	-
Input Type	Standard

Gate Charge	155 nC
Td (on/off) @ 25°C	22ns/280ns
Test Condition	800V, 25A, 1Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	D3Pak
