APT20GF120BRDG

In Stock: 31
APT20GF120BRDG - Microchip Technology - Transistors - IGBTs - Single
REF: APT20GF120BRDG Microchip Technology
APT20GF120BRDG

Microchip Technology

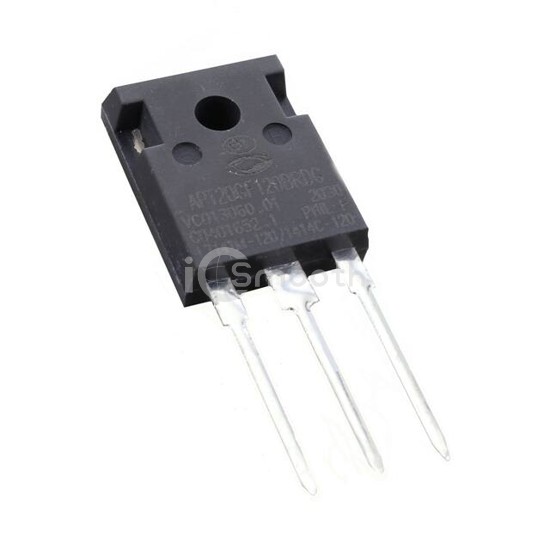

IGBT NPT COMBI 1200V 20A TO-247

APT20GF120BRDG is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT NPT COMBI 1200V 20A TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 32 A.

Request a Quote

In Stock: 31

Specifications

17 parameters
Product StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)32 A
Current - Collector Pulsed (Icm)64 A
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 15A
Power - Max200 W
Switching Energy-
Input TypeStandard
Gate Charge140 nC
Td (on/off) @ 25°C17ns, 93ns
Test Condition792V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)85 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
