Name: 2N3439L
Brand: Microchip Technology
SKU: 2N3439L
Availability: InStock

REF: 2N3439L Microchip Technology

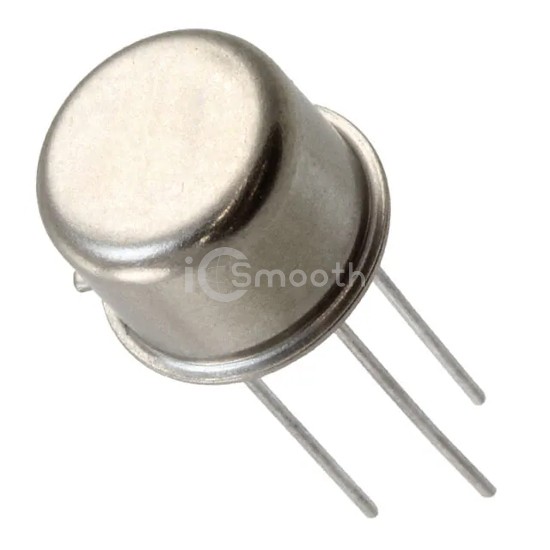

2N3439L

TRANS NPN 350V 1A TO5

2N3439L is a Transistors - Bipolar (BJT) - Single manufactured by Microchip Technology. TRANS NPN 350V 1A TO5. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-205AA, TO-5-3 Metal Can, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 4,305

Specifications

13 parameters

Product Status	Discontinued at Digi-Key
Transistor Type	NPN
Current - Collector (Ic) (Max)	1 A
Voltage - Collector Emitter Breakdown (Max)	350 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 4mA, 50mA
Current - Collector Cutoff (Max)	2µA
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 20mA, 10V

Power - Max	800 mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-205AA, TO-5-3 Metal Can
Supplier Device Package	TO-5
