Name: 2N2329S
Brand: Microchip Technology
SKU: 2N2329S
Price: 45.38 USD
Availability: InStock

REF: 2N2329S Microchip Technology

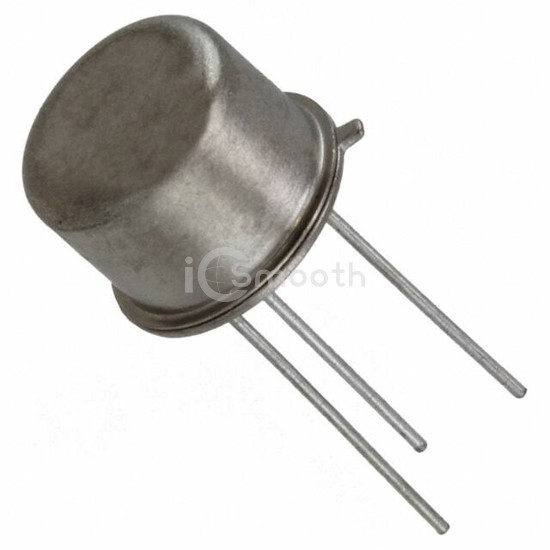

2N2329S

SCR

2N2329S is a Thyristors - SCRs manufactured by Microchip Technology. SCR. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, package / case TO-205AD, TO-39-3 Metal Can.

Request a Quote

In Stock: 5,552

Specifications

15 parameters

Product Status	Active
Voltage - Off State	400 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	200 µA
Voltage - On State (Vtm) (Max)	-
Current - On State (It (AV)) (Max)	220 mA
Current - On State (It (RMS)) (Max)	-
Current - Hold (Ih) (Max)	2 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	15A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-65°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39
