2ASC-12A2HP

In Stock: 8

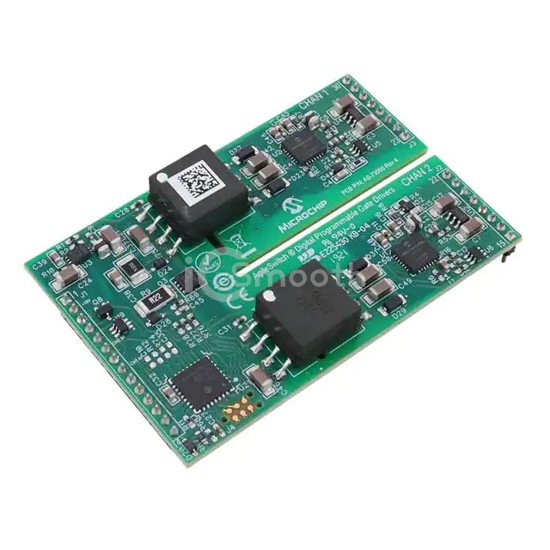

2ASC-12A2HP - Microchip Technology - PMIC - Gate Drivers
REF: 2ASC-12A2HP Microchip Technology
2ASC-12A2HP

Microchip Technology

DUAL-CHANNEL AUGMENTED CORE 2 -

2ASC-12A2HP is a PMIC - Gate Drivers manufactured by Microchip Technology. DUAL-CHANNEL AUGMENTED CORE 2 -. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 14V ~ 16V, package / case 30-DIP Module.

Datasheet Request a Quote

In Stock: 8

Tiered Pricing USD
1+ $130.0200 —
25+ $108.3508 -17%
100+ $104.6625 -20% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeIGBT, SiC MOSFET
Voltage - Supply14V ~ 16V
Logic Voltage - VIL, VIH1.25V, 3.5V
Current - Peak Output (Source, Sink)10A, 10A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)80ns, 90ns
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case30-DIP Module
Supplier Device Package-
