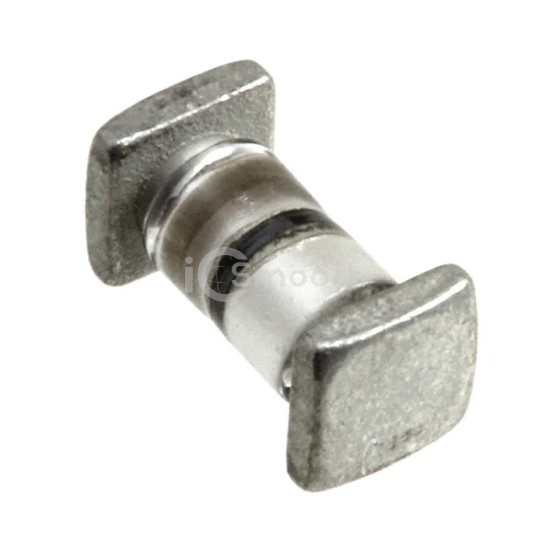

DIODE SMALL-SIGNAL SCHOTTKY
1N5820US/TR is a Diodes - Rectifiers - Single manufactured by Microchip Technology. DIODE SMALL-SIGNAL SCHOTTKY. Key specifications: mounting type Surface Mount, package / case SQ-MELF, B.
In Stock: 4,514
| Product Status | Active |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 20 V |
|---|---|
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF |
| Operating Temperature - Junction | -65°C ~ 125°C |
