DIODE GEN PURP 100V 20A DO203AA

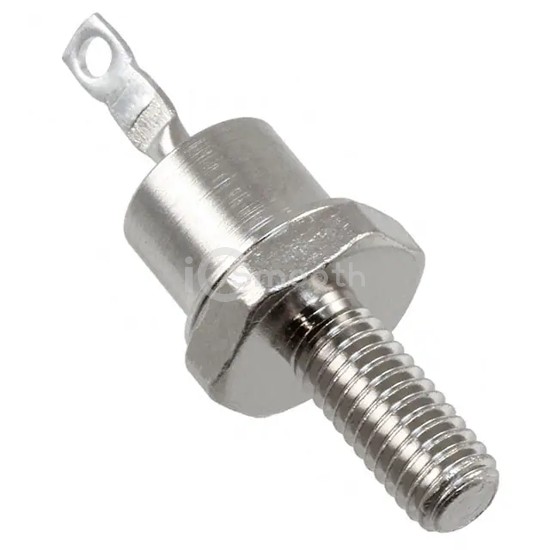

1N5814 is a Diodes - Rectifiers - Single manufactured by Microchip Technology. DIODE GEN PURP 100V 20A DO203AA. Key specifications: mounting type Stud Mount, package / case DO-203AA, DO-4, Stud.
In Stock: 8,897
| Product Status | Active |
|---|---|
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 20A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V |
|---|---|
| Capacitance @ Vr, F | 300pF @ 10V, 1MHz |
| Mounting Type | Stud Mount |
| Package / Case | DO-203AA, DO-4, Stud |
| Supplier Device Package | DO-203AA |
| Operating Temperature - Junction | -65°C ~ 175°C |
