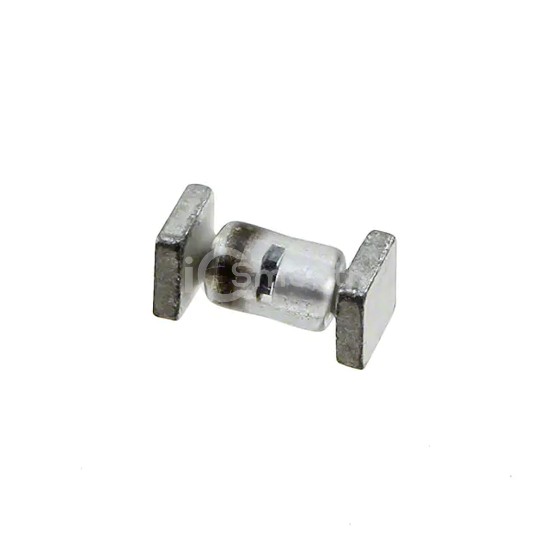

DIODE GEN PURP 100V 3A B-MELF
1N5809US is a Diodes - Rectifiers - Single manufactured by Microchip Technology. DIODE GEN PURP 100V 3A B-MELF. Key specifications: mounting type Surface Mount, package / case SQ-MELF, B.
In Stock: 1,069
| Product Status | Active |
|---|---|
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 875 mV @ 4 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
|---|---|
| Capacitance @ Vr, F | 60pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SQ-MELF, B |
| Supplier Device Package | B, SQ-MELF |
| Operating Temperature - Junction | -65°C ~ 175°C |
