DIODE GEN PURP 100V 3A AXIAL

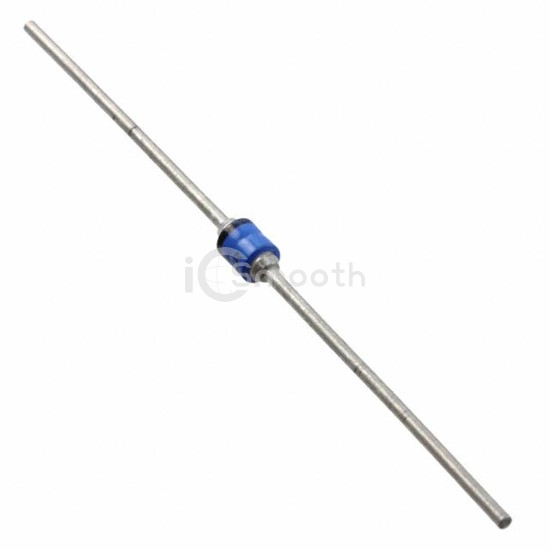

1N5809 is a Diodes - Rectifiers - Single manufactured by Microchip Technology. DIODE GEN PURP 100V 3A AXIAL. Key specifications: mounting type Through Hole, package / case B, Axial.
In Stock: 8,747
| Product Status | Active |
|---|---|
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 875 mV @ 4 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
|---|---|
| Capacitance @ Vr, F | 60pF @ 10V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | B, Axial |
| Supplier Device Package | - |
| Operating Temperature - Junction | -65°C ~ 175°C |
