1N5541B

In Stock: 8,138

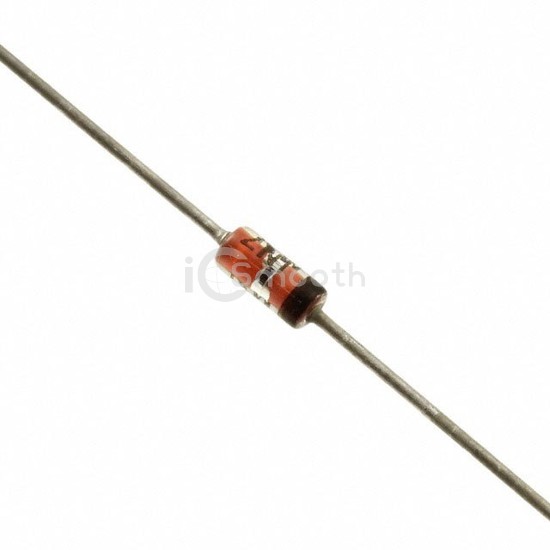

1N5541B - Microchip Technology - Diodes - Zener - Single
REF: 1N5541B Microchip Technology
1N5541B

Microchip Technology

DIODE ZENER 22V 500MW DO35

1N5541B is a Diodes - Zener - Single manufactured by Microchip Technology. DIODE ZENER 22V 500MW DO35. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C, package / case DO-204AH, DO-35, Axial, power - max 500 mW.

Datasheet Request a Quote

In Stock: 8,138

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)22 V
Tolerance±5%
Power - Max500 mW
Impedance (Max) (Zzt)108 Ohms
Current - Reverse Leakage @ Vr10 nA @ 19.8 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 200 mA
Operating Temperature-65°C ~ 175°C
Mounting TypeThrough Hole
Package / CaseDO-204AH, DO-35, Axial
Supplier Device PackageDO-35
