1N5236A/TR

In Stock: 8,387

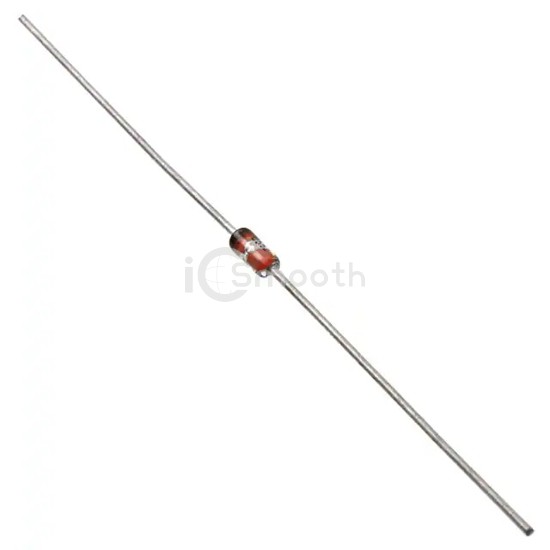

1N5236A/TR - Microchip Technology - Diodes - Zener - Single
REF: 1N5236A/TR Microchip Technology
1N5236A/TR

Microchip Technology

VOLTAGE REGULATOR

1N5236A/TR is a Diodes - Zener - Single manufactured by Microchip Technology. VOLTAGE REGULATOR. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C (TJ), package / case DO-204AH, DO-35, Axial, power - max 500 mW.

Datasheet Request a Quote

In Stock: 8,387

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)7.5 V
Tolerance±10%
Power - Max500 mW
Impedance (Max) (Zzt)6 Ohms
Current - Reverse Leakage @ Vr3 µA @ 5.7 V
Voltage - Forward (Vf) (Max) @ If1.5 V @ 200 mA
Operating Temperature-65°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseDO-204AH, DO-35, Axial
Supplier Device PackageDO-35 (DO-204AH)
