1N4109

In Stock: 396

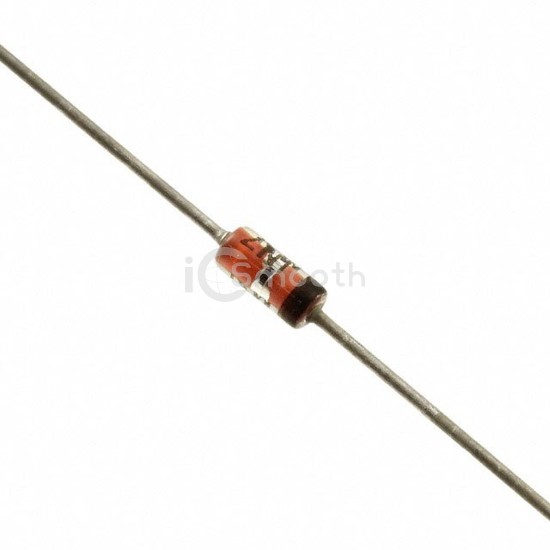

1N4109 - Microchip Technology - Diodes - Zener - Single
REF: 1N4109 Microchip Technology
1N4109

Microchip Technology

DIODE ZENER 15V 500MW DO204AH

1N4109 is a Diodes - Zener - Single manufactured by Microchip Technology. DIODE ZENER 15V 500MW DO204AH. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C, package / case DO-204AH, DO-35, Axial, power - max 500 mW.

Datasheet Request a Quote

In Stock: 396

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)15 V
Tolerance±5%
Power - Max500 mW
Impedance (Max) (Zzt)100 Ohms
Current - Reverse Leakage @ Vr50 nA @ 11.4 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 200 mA
Operating Temperature-65°C ~ 175°C
Mounting TypeThrough Hole
Package / CaseDO-204AH, DO-35, Axial
Supplier Device PackageDO-204AH (DO-35 Glass)
