TIP30B-BP

In Stock: 1,481

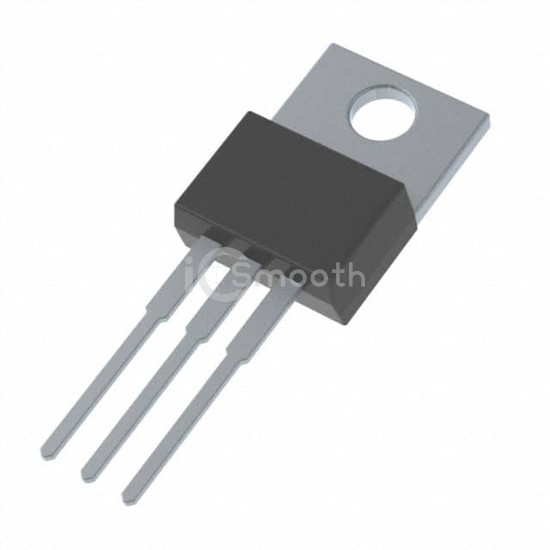

TIP30B-BP - Micro Commercial Co - Transistors - Bipolar (BJT) - Single
REF: TIP30B-BP Micro Commercial Co
TIP30B-BP

Micro Commercial Co

TRANS PNP 80V 1A TO220AB

TIP30B-BP is a Transistors - Bipolar (BJT) - Single manufactured by Micro Commercial Co. TRANS PNP 80V 1A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 1,481

Specifications

13 parameters
Product StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic700mV @ 125mA, 1A
Current - Collector Cutoff (Max)300µA
DC Current Gain (hFE) (Min) @ Ic, Vce40 @ 200mA, 4V
Power - Max30 W
Frequency - Transition3MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220AB
