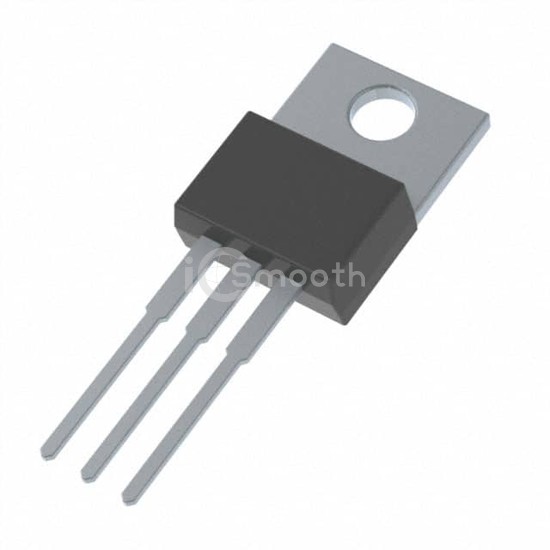

TIP120-BP

In Stock: 6,111
TIP120-BP - Micro Commercial Co - Transistors - Bipolar (BJT) - Single
REF: TIP120-BP Micro Commercial Co
TIP120-BP

Micro Commercial Co

TRANS NPN DARL 60V 5A TO220AB

TIP120-BP is a Transistors - Bipolar (BJT) - Single manufactured by Micro Commercial Co. TRANS NPN DARL 60V 5A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 6,111

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic4V @ 20mA, 5A
Current - Collector Cutoff (Max)500µA
DC Current Gain (hFE) (Min) @ Ic, Vce1000 @ 3A, 3V
Power - Max65 W
Frequency - Transition-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220AB
