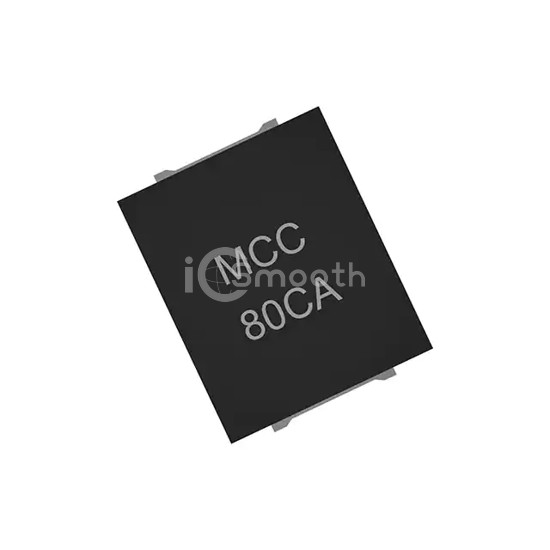

Name: SMGJ80CA-TP
Brand: Micro Commercial Co
SKU: SMGJ80CA-TP
Price: 2.82 USD
Availability: InStock

REF: SMGJ80CA-TP Micro Commercial Co

SMGJ80CA-TP

TVS DIODE 80VWM 130VC SMG

SMGJ80CA-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 80VWM 130VC SMG. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 2-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 1,490

Tiered Pricing USD

1+ $2.8200 —

10+ $2.4600 -13%

100+ $1.7901 -37%

500+ $1.5959 -43% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	80V
Voltage - Breakdown (Min)	90V
Voltage - Clamping (Max) @ Ipp	130V
Current - Peak Pulse (10/1000µs)	2500A (2.5kA) (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	1.5nF @ 10kHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	2-SMD, Flat Lead
Supplier Device Package	SMG
