Name: SMEJ86CA-TP
Brand: Micro Commercial Co
SKU: SMEJ86CA-TP
Price: 23.00 USD
Availability: InStock

REF: SMEJ86CA-TP Micro Commercial Co

SMEJ86CA-TP

Micro Commercial Co

TVS DIODE 86VWM 157VC SME

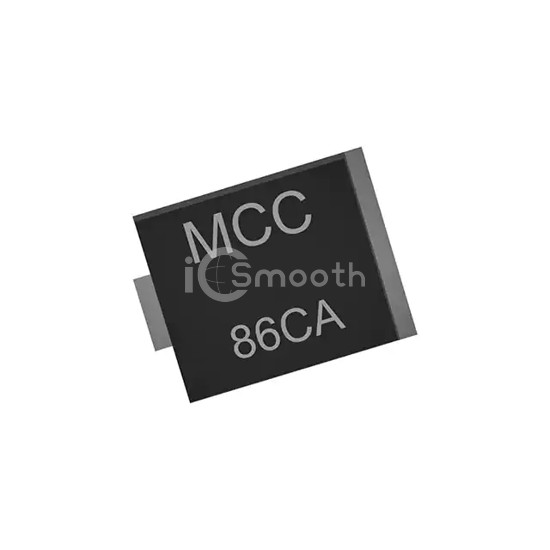

SMEJ86CA-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 86VWM 157VC SME. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 2-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 3,937

Tiered Pricing USD

1+ $23.0000 —

10+ $16.6050 -28%

100+ $13.5000 -41% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	86V
Voltage - Breakdown (Min)	96V
Voltage - Clamping (Max) @ Ipp	157V
Current - Peak Pulse (10/1000µs)	10000A (10kA) (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	6pF @ 10kHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	2-SMD, Flat Lead
Supplier Device Package	SME
