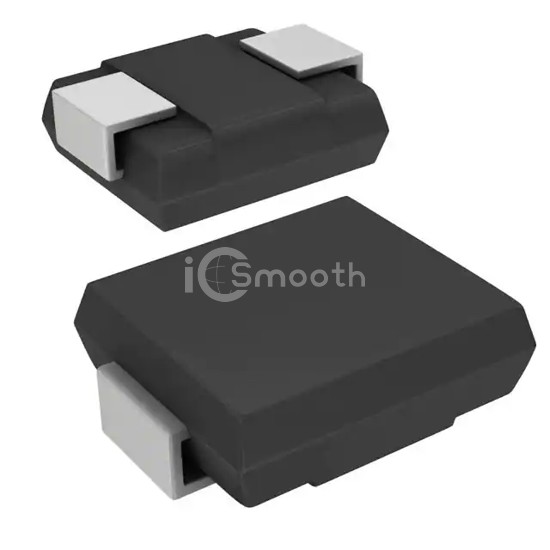

Name: SMCJ1.5KE33A-TP
Brand: Micro Commercial Co
SKU: SMCJ1.5KE33A-TP
Price: 0.72 USD
Availability: InStock

REF: SMCJ1.5KE33A-TP Micro Commercial Co

SMCJ1.5KE33A-TP

Micro Commercial Co

TVS DIODE 28.2VWM 45.7VC DO214AB

SMCJ1.5KE33A-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 28.2VWM 45.7VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 2,975

Tiered Pricing USD

1+ $0.7200 —

10+ $0.4810 -33%

100+ $0.4243 -41%

500+ $0.3548 -51%

1,000+ $0.3214 -55% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	28.2V
Voltage - Breakdown (Min)	31.4V
Voltage - Clamping (Max) @ Ipp	45.7V
Current - Peak Pulse (10/1000µs)	33.3A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
