Name: SMAJ33CA-TP
Brand: Micro Commercial Co
SKU: SMAJ33CA-TP
Price: 0.21 USD
Availability: InStock

REF: SMAJ33CA-TP Micro Commercial Co

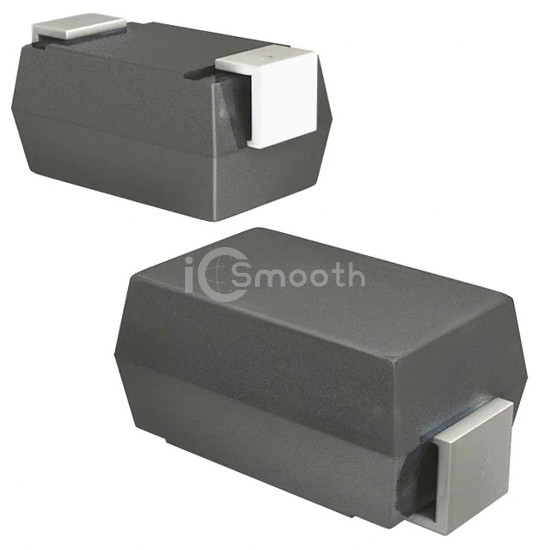

SMAJ33CA-TP

TVS DIODE 33VWM 53.3VC DO214AC

SMAJ33CA-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 33VWM 53.3VC DO214AC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TA), package / case DO-214AC, SMA.

Datasheet Request a Quote

In Stock: 34,893

Tiered Pricing USD

1+ $0.2100 —

10+ $0.1430 -32%

100+ $0.0690 -67% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	33V
Voltage - Breakdown (Min)	36.7V
Voltage - Clamping (Max) @ Ipp	53.3V
Current - Peak Pulse (10/1000µs)	7.5A

Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TA)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
