Name: P4KE440CA-TP
Brand: Micro Commercial Co
SKU: P4KE440CA-TP
Price: 0.17 USD
Availability: InStock

REF: P4KE440CA-TP Micro Commercial Co

P4KE440CA-TP

Micro Commercial Co

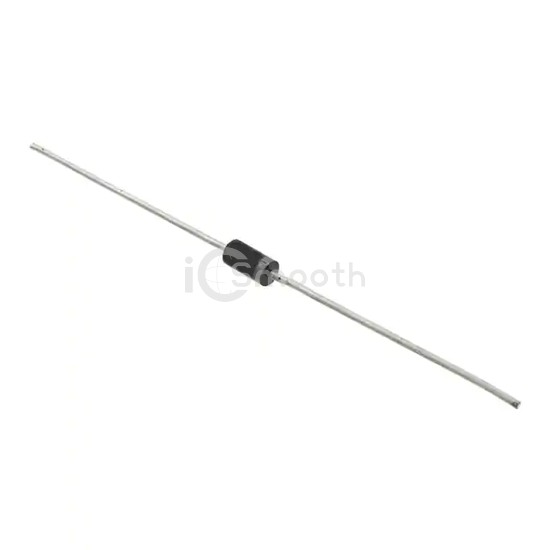

TVS DIODE 376VWM 602VC DO41

P4KE440CA-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 376VWM 602VC DO41. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case DO-204AL, DO-41, Axial.

Datasheet Request a Quote

In Stock: 9,722

Tiered Pricing USD

5,000+ $0.1683 —

10,000+ $0.1551 -8%

15,000+ $0.1483 -12%

25,000+ $0.1408 -16%

35,000+ $0.1375 -18% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	376V
Voltage - Breakdown (Min)	418V
Voltage - Clamping (Max) @ Ipp	602V
Current - Peak Pulse (10/1000µs)	680mA

Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Supplier Device Package	DO-41
