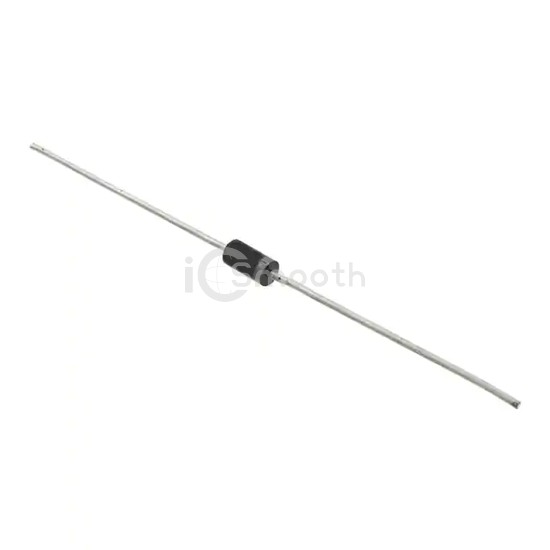

Name: P4KE440A-TP
Brand: Micro Commercial Co
SKU: P4KE440A-TP
Price: 0.13 USD
Availability: InStock

REF: P4KE440A-TP Micro Commercial Co

P4KE440A-TP

TVS DIODE 376VWM 602VC DO41

P4KE440A-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 376VWM 602VC DO41. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case DO-204AL, DO-41, Axial.

Datasheet Request a Quote

In Stock: 4,120

Tiered Pricing USD

5,000+ $0.1265 —

10,000+ $0.1160 -8%

15,000+ $0.1107 -13%

25,000+ $0.1047 -17%

35,000+ $0.1011 -20%

50,000+ $0.0976 -23% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	376V
Voltage - Breakdown (Min)	418V
Voltage - Clamping (Max) @ Ipp	602V
Current - Peak Pulse (10/1000µs)	680mA

Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Supplier Device Package	DO-41
