Name: P4KE100A-TP
Brand: Micro Commercial Co
SKU: P4KE100A-TP
Price: 0.10 USD
Availability: InStock

REF: P4KE100A-TP Micro Commercial Co

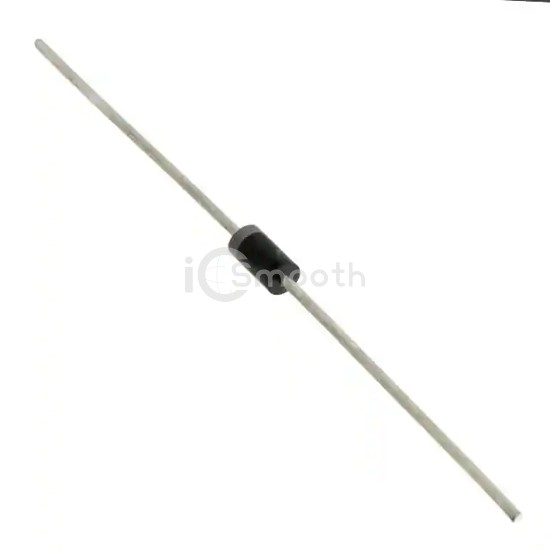

P4KE100A-TP

TVS DIODE 85.5VWM 137VC DO41

P4KE100A-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 85.5VWM 137VC DO41. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case DO-204AL, DO-41, Axial.

Datasheet Request a Quote

In Stock: 5,241

Tiered Pricing USD

5,000+ $0.0950 —

10,000+ $0.0867 -9%

15,000+ $0.0824 -13%

25,000+ $0.0777 -18%

35,000+ $0.0749 -21%

50,000+ $0.0721 -24%

125,000+ $0.0688 -28% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	85.5V
Voltage - Breakdown (Min)	95V
Voltage - Clamping (Max) @ Ipp	137V
Current - Peak Pulse (10/1000µs)	3A

Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Supplier Device Package	DO-41
