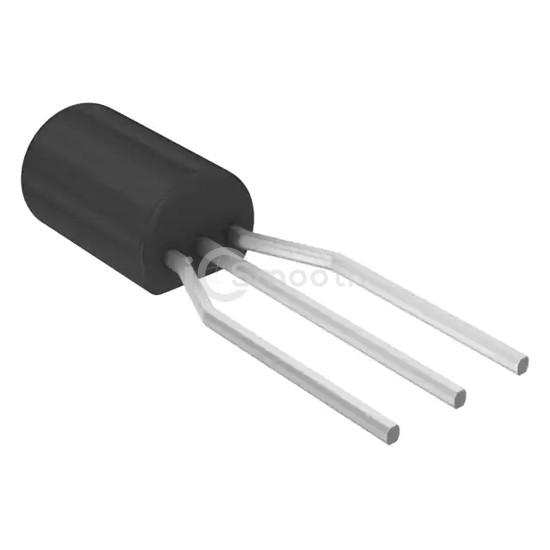

Name: MPS751-BP
Brand: Micro Commercial Co
SKU: MPS751-BP
Availability: InStock

REF: MPS751-BP Micro Commercial Co

MPS751-BP

TRANS PNP 60V 2A TO92

MPS751-BP is a Transistors - Bipolar (BJT) - Single manufactured by Micro Commercial Co. TRANS PNP 60V 2A TO92. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA), current - collector (ic) (max) 2 A.

Datasheet Request a Quote

In Stock: 5,934

Specifications

13 parameters

Product Status	Obsolete
Transistor Type	PNP
Current - Collector (Ic) (Max)	2 A
Voltage - Collector Emitter Breakdown (Max)	60 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 200mA, 2A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	75 @ 1A, 2V

Power - Max	625 mW
Frequency - Transition	75MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92
