Name: MPS2907A-BP
Brand: Micro Commercial Co
SKU: MPS2907A-BP
Availability: InStock

REF: MPS2907A-BP Micro Commercial Co

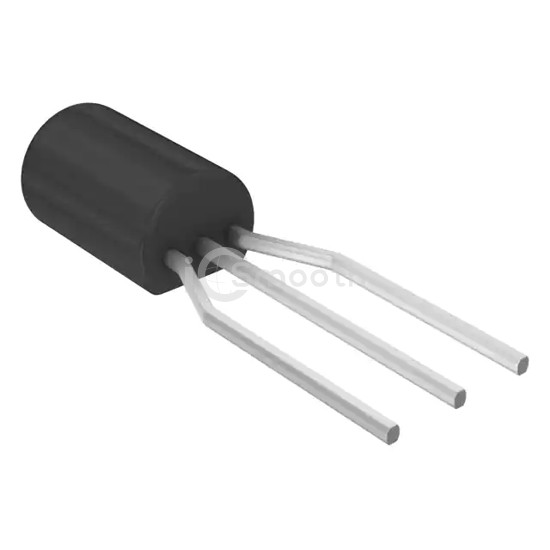

MPS2907A-BP

TRANS PNP 60V 0.6A TO92

MPS2907A-BP is a Transistors - Bipolar (BJT) - Single manufactured by Micro Commercial Co. TRANS PNP 60V 0.6A TO92. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA), current - collector (ic) (max) 600 mA.

Datasheet Request a Quote

In Stock: 1,250

Specifications

13 parameters

Product Status	Obsolete
Transistor Type	PNP
Current - Collector (Ic) (Max)	600 mA
Voltage - Collector Emitter Breakdown (Max)	60 V
Vce Saturation (Max) @ Ib, Ic	600mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	50nA
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V

Power - Max	625 mW
Frequency - Transition	200MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92
