MIW40N65-BP

In Stock: 305

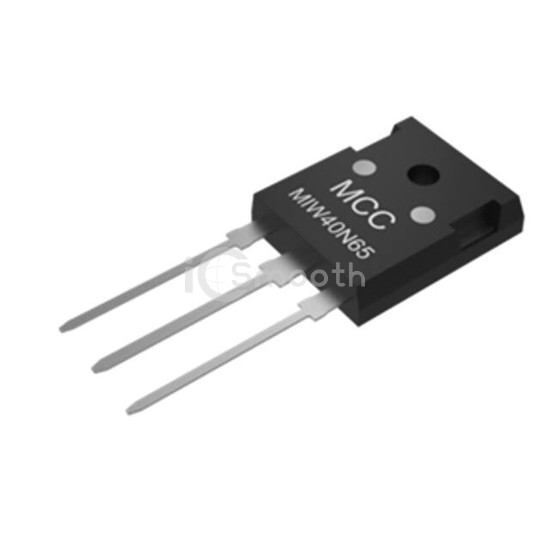

MIW40N65-BP - Micro Commercial Co - Transistors - IGBTs - Single
REF: MIW40N65-BP Micro Commercial Co
MIW40N65-BP

Micro Commercial Co

IGBT 650V 40A TO-247

MIW40N65-BP is a Transistors - IGBTs - Single manufactured by Micro Commercial Co. IGBT 650V 40A TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 305

Specifications

17 parameters
Product StatusLast Time Buy
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 40A
Power - Max280 W
Switching Energy3.3mJ (on), 1.4mJ (off)
Input TypeStandard
Gate Charge165 nC
Td (on/off) @ 25°C62ns/265ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)41 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
