MC7809CT-BP

In Stock: 8,320

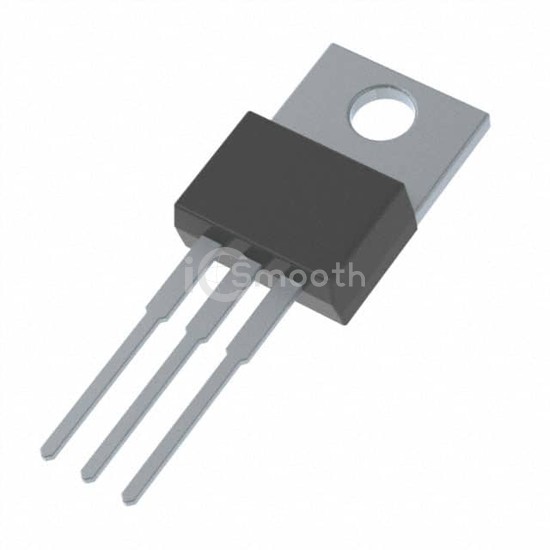

MC7809CT-BP - Micro Commercial Co - PMIC - Voltage Regulators - Linear
REF: MC7809CT-BP Micro Commercial Co
MC7809CT-BP

Micro Commercial Co

IC REG LINEAR 9V 1A TO220

MC7809CT-BP is a PMIC - Voltage Regulators - Linear manufactured by Micro Commercial Co. IC REG LINEAR 9V 1A TO220. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 125°C, package / case TO-220-3, current - output 1A.

Datasheet Request a Quote

In Stock: 8,320

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)30V
Voltage - Output (Min/Fixed)9V
Voltage - Output (Max)-
Voltage Dropout (Max)2V @ 1A (Typ)
Current - Output1A
Current - Quiescent (Iq)8 mA
Current - Supply (Max)-
PSRR72dB (120Hz)
Control Features-
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature0°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220AB
