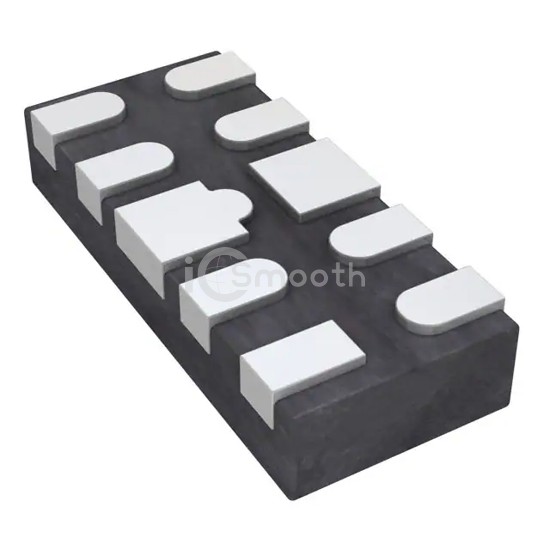

Name: ESDSLC0534DFN10-TP
Brand: Micro Commercial Co
SKU: ESDSLC0534DFN10-TP
Price: 0.23 USD
Availability: InStock

REF: ESDSLC0534DFN10-TP Micro Commercial Co

ESDSLC0534DFN10-TP

Micro Commercial Co

DIODE ESD PROTECTION DFN

ESDSLC0534DFN10-TP is a TVS - Diodes manufactured by Micro Commercial Co. DIODE ESD PROTECTION DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 10-XFDFN.

Datasheet Request a Quote

In Stock: 5,753

Tiered Pricing USD

3,000+ $0.2321 —

6,000+ $0.2137 -8%

9,000+ $0.2043 -12%

15,000+ $0.1938 -17%

21,000+ $0.1875 -19%

30,000+ $0.1875 -19% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	50W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.4pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-XFDFN
Supplier Device Package	10-DFN (2.5x1)
