Name: ESDLC0524DFN10-TP
Brand: Micro Commercial Co
SKU: ESDLC0524DFN10-TP
Price: 0.44 USD
Availability: InStock

REF: ESDLC0524DFN10-TP Micro Commercial Co

ESDLC0524DFN10-TP

Micro Commercial Co

TVS DIODE 5VWM 28VC 10DFN

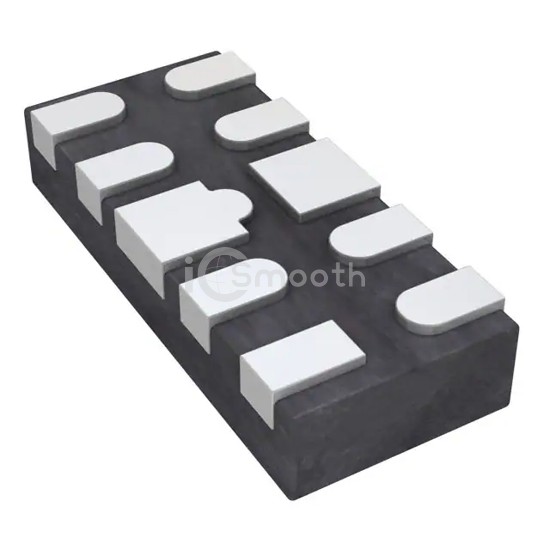

ESDLC0524DFN10-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 5VWM 28VC 10DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 10-XFDFN.

Datasheet Request a Quote

In Stock: 4,386

Tiered Pricing USD

1+ $0.4400 —

10+ $0.2840 -35%

100+ $0.1330 -70%

500+ $0.1260 -71%

1,000+ $0.1122 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6.1V
Voltage - Clamping (Max) @ Ipp	28V
Current - Peak Pulse (10/1000µs)	5A (8/20µs)

Power - Peak Pulse	150W
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	0.8pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-XFDFN
Supplier Device Package	10-DFN (2.5x1)
