Name: ESDH5V0D5-TP
Brand: Micro Commercial Co
SKU: ESDH5V0D5-TP
Price: 0.23 USD
Availability: InStock

REF: ESDH5V0D5-TP Micro Commercial Co

ESDH5V0D5-TP

Micro Commercial Co

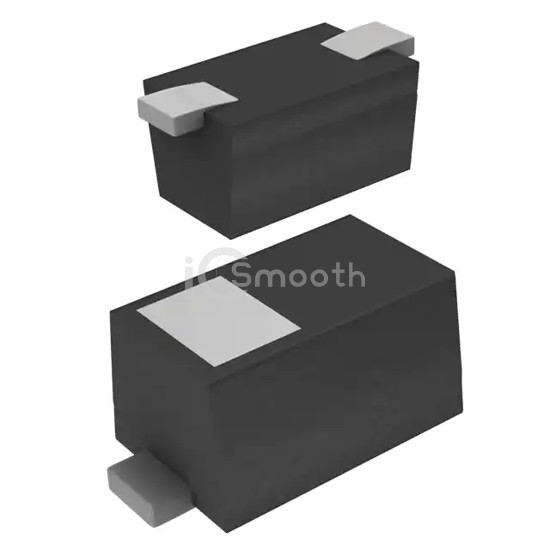

TVS DIODE 5VWM 14VC SOD523

ESDH5V0D5-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 5VWM 14VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 94,768

Tiered Pricing USD

1+ $0.2300 —

10+ $0.1430 -38%

100+ $0.0890 -61%

500+ $0.0652 -72%

1,000+ $0.0575 -75%

2,000+ $0.0510 -78% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	14V
Current - Peak Pulse (10/1000µs)	22A (8/20µs)

Power - Peak Pulse	300W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	160pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
