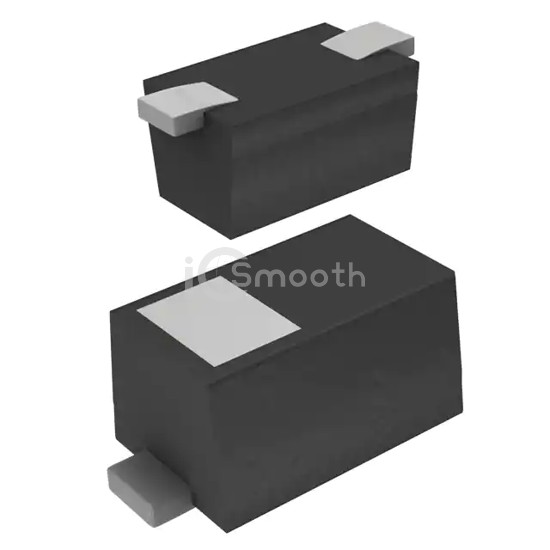

Name: ESD7V0D5-TP
Brand: Micro Commercial Co
SKU: ESD7V0D5-TP
Price: 0.23 USD
Availability: InStock

REF: ESD7V0D5-TP Micro Commercial Co

ESD7V0D5-TP

TVS DIODE 7VWM 22.7VC SOD523

ESD7V0D5-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 7VWM 22.7VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 5,855

Tiered Pricing USD

1+ $0.2300 —

10+ $0.1390 -40%

100+ $0.0500 -78%

500+ $0.0480 -79%

1,000+ $0.0450 -80% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	7V (Max)
Voltage - Breakdown (Min)	7.5V
Voltage - Clamping (Max) @ Ipp	22.7V
Current - Peak Pulse (10/1000µs)	8.8A (8/20µs)

Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	65pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
