Name: ESD12VD7-TP
Brand: Micro Commercial Co
SKU: ESD12VD7-TP
Price: 0.09 USD
Availability: InStock

REF: ESD12VD7-TP Micro Commercial Co

ESD12VD7-TP

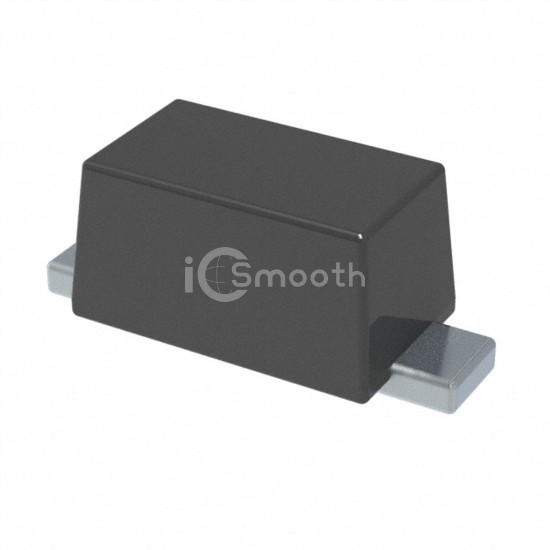

TVS DIODE 12VWM 23.7VC SOD723

ESD12VD7-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 12VWM 23.7VC SOD723. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOD-723.

Datasheet Request a Quote

In Stock: 8,254

Tiered Pricing USD

8,000+ $0.0884 —

16,000+ $0.0783 -11%

24,000+ $0.0773 -13%

56,000+ $0.0657 -26% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	13.5V
Voltage - Clamping (Max) @ Ipp	23.7V
Current - Peak Pulse (10/1000µs)	5.4A (8/20µs)

Power - Peak Pulse	128W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	30pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-723
Supplier Device Package	SOD-723
