Name: ESD12VD5-TP
Brand: Micro Commercial Co
SKU: ESD12VD5-TP
Price: 0.15 USD
Availability: InStock

REF: ESD12VD5-TP Micro Commercial Co

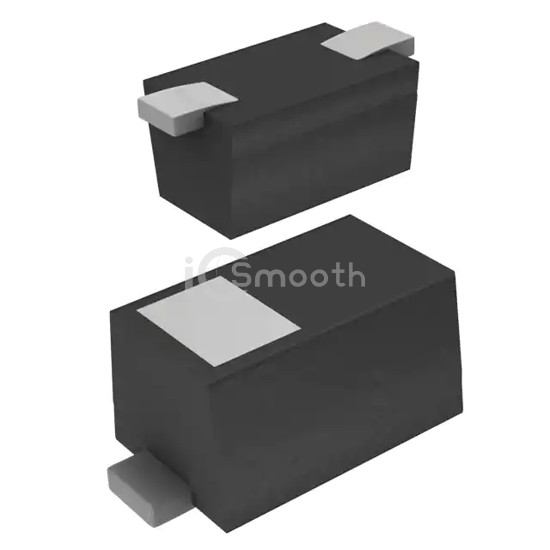

ESD12VD5-TP

TVS DIODE 12VWM 25VC SOD523

ESD12VD5-TP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 12VWM 25VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 126,223

Tiered Pricing USD

1+ $0.1500 —

10+ $0.1050 -30%

100+ $0.0440 -71%

500+ $0.0430 -71% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	14.1V
Voltage - Clamping (Max) @ Ipp	25V
Current - Peak Pulse (10/1000µs)	9.6A (8/20µs)

Power - Peak Pulse	240W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	55pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
