DL5236B-TP

In Stock: 8,326

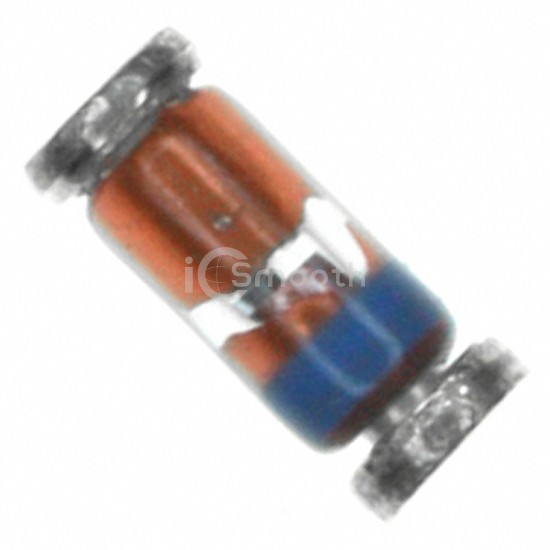

DL5236B-TP - Micro Commercial Co - Diodes - Zener - Single
REF: DL5236B-TP Micro Commercial Co
DL5236B-TP

Micro Commercial Co

DIODE ZENER 7.5V 500MW MINI MELF

DL5236B-TP is a Diodes - Zener - Single manufactured by Micro Commercial Co. DIODE ZENER 7.5V 500MW MINI MELF. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 175°C, package / case DO-213AC, MINI-MELF, SOD-80, power - max 500 mW.

Datasheet Request a Quote

In Stock: 8,326

Specifications

11 parameters
Product StatusObsolete
Voltage - Zener (Nom) (Vz)7.5 V
Tolerance±5%
Power - Max500 mW
Impedance (Max) (Zzt)6 Ohms
Current - Reverse Leakage @ Vr3 µA @ 6 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 200 mA
Operating Temperature-65°C ~ 175°C
Mounting TypeSurface Mount
Package / CaseDO-213AC, MINI-MELF, SOD-80
Supplier Device PackageMini MELF
