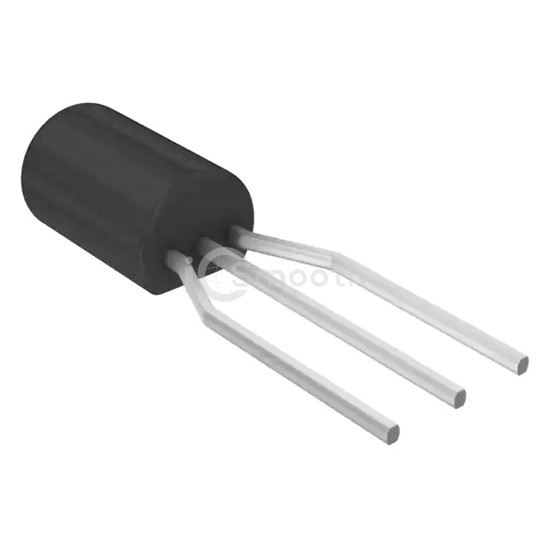

Name: BC558C-BP
Brand: Micro Commercial Co
SKU: BC558C-BP
Availability: InStock

REF: BC558C-BP Micro Commercial Co

BC558C-BP

TRANS PNP 30V 0.1A TO92

BC558C-BP is a Transistors - Bipolar (BJT) - Single manufactured by Micro Commercial Co. TRANS PNP 30V 0.1A TO92. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA), current - collector (ic) (max) 100 mA.

Datasheet Request a Quote

In Stock: 3,198

Specifications

13 parameters

Product Status	Obsolete
Transistor Type	PNP
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	30 V
Vce Saturation (Max) @ Ib, Ic	650mV @ 5mA, 100mA
Current - Collector Cutoff (Max)	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	420 @ 2mA, 5V

Power - Max	625 mW
Frequency - Transition	150MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92
